16. ALU Design、Control Signals、Set-Less-Than
#CC-02-016中ALU DesignControl SignalsSet-Less-Than

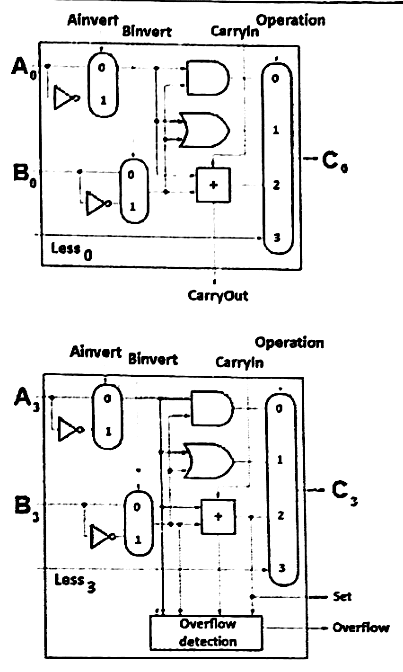

Given the normal 1-bit ALU (top) and the MSB 1-bit ALU (bottom), you can implement the C-language statement by giving tuple (Ainvert, Binvert, CarryIn, Operation). Each A,B,C represent 4 bits wide. For condition determination, C is 0001 if TRUE, and is 0000 if FALSE. E.g. Give (0, 0, 0, 2) for C=A+B
📄 交大111
