16. 2-bit Branch Predictor、Prediction Accuracy
#CC-05-016中2-bit Branch PredictorPrediction Accuracy

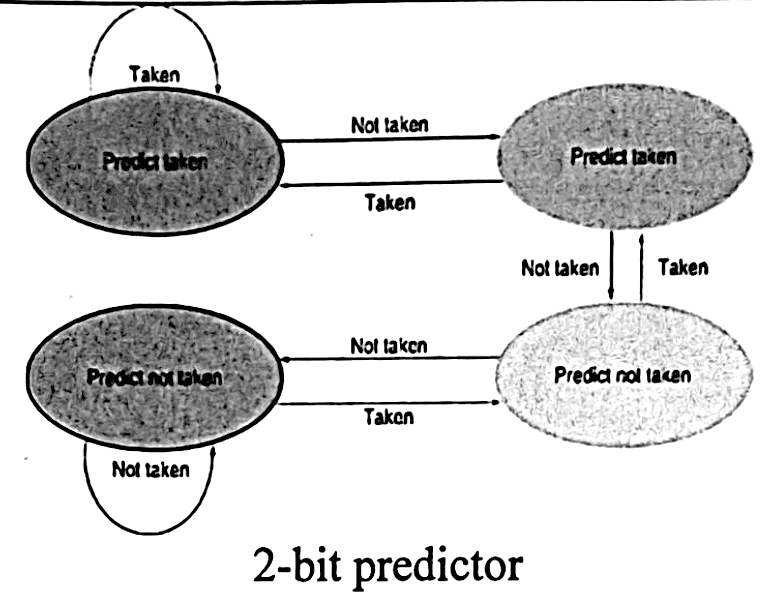

Consider the 2-bit predictor shown in the Figure below, and assume the predictor starts at the top-left state (i.e., the "strongly predict taken" state). Given the branch outcome sequence: N, T, N, N, T, (where T = taken, N = not-taken), which of the following statements are correct?

題目附圖
📄 交大114
